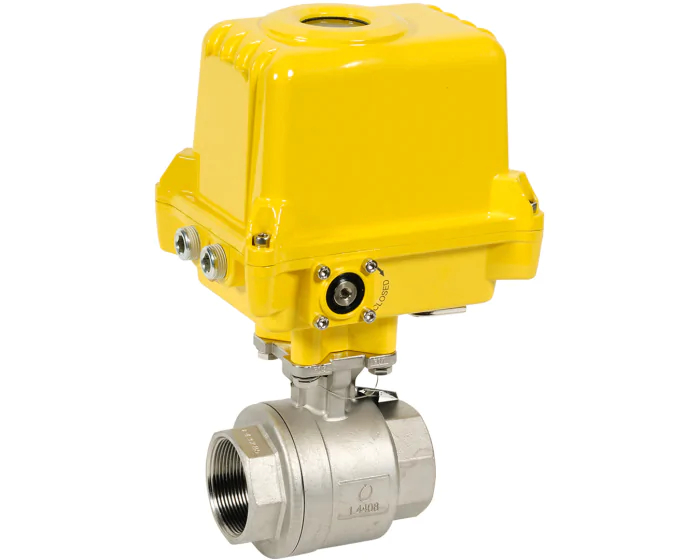

The 2-piece body ball valve 715 XS has a CF8M (1.4408) stainless steel body and ball, PTFE/glass seats. It is actuated with an ATEX electric actuator. PS: 63 bar, TS: -10/+180°C. G threaded fittings.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| ATEX atmosphere | IIB |
| Shaft/stem matérial | Stainless steel 316 |
| Manual override | By key |
| Declutchable | No |
| DN | DN15 - 1/2'' |
| Duty service | S4 duty service - 50% |
| Face to Face (mm) | 55.0 |
| Protection index (IP) | IP 67 |
| Torque limiter | No |
| Recommended location | Outdoor |
| Body material | Stainless steel CF8M (1.4408) |
| ATEX protection mode | Ex d |
| Number of ways | 2 |
| Bore | Full |
| Packing gland | PTFE |
| PS (bar) | 63 |
| Power (W) | 6 |
| Connections | BSP FF |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator type | SA05-X |
| Electric actuator series | SA-X/NA-X ATEX series |
| Seats | PTFE-Glass |
| Operating time (s) | 17.0 |
| Surface temperature | T4 |
| Voltage | 230 V AC |
| TS max (°C) | 180 |
| TS min (°C) | -10 |
| Ball valve design | 2-piece body |
| ATEX zone | 1. 2 |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
| Fire safe | No |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body DN15 - 1/2'' | 272402023310 | S1005240 |
€678.91
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body DN25 - 1'' | 272404023310 | S1005241 |
€700.13
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body DN32 - 1''1/4 | 272405023310 | S1005242 |
€719.99
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body DN40 - 1''1/2 | 272406023310 | S1005243 |
€758.47
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body DN50 - 2'' | 272407023310 | S1005244 |
€821.04
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body DN65 - 2''1/2 | 272408023369 | S1005245 |
€981.76
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body DN80 - 3'' | 272409023369 | S1005246 |
€1,081.91
(excl. btw)
|
add to cart |
